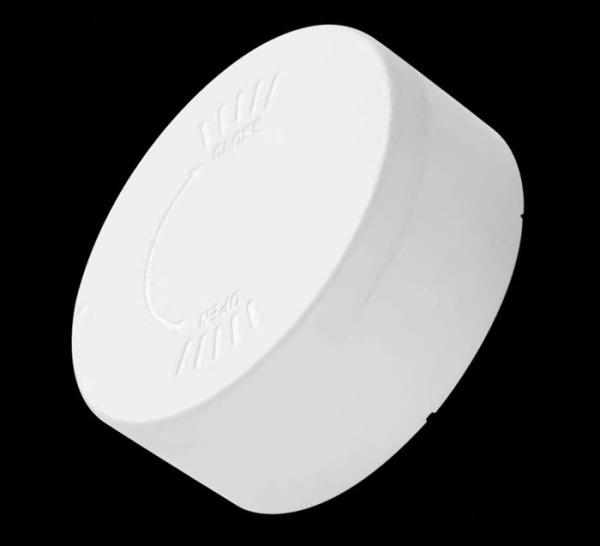

    CE Android BLE Beacon , 80m Bluetooth 5.0 Beacon With Low Power

    Ask Lasest Price
    Brand Name : Createk
    Model Number : ITBB803-P
    Certification : CE, RoHS, FCC, KC
    Payment Terms : T/T, Western Union
    Supply Ability : 100k pcs/ month
    Delivery Time : 4 weeks
    Price : USD7.2 / negotiable
    • Product Details
    • Company Profile

    CE Android BLE Beacon , 80m Bluetooth 5.0 Beacon With Low Power

    Bluetooth Beacon with low power domestic chip 3431 broadcast UUID, Major Minor RSSI battery power reach 80 meters


    Model Name: ITBB803-P

    Bluetooth beacon ITBB803_standard_3431_waterproof


    Product Overview


    We designed our own APK/APP for our Bluetooth beacon, it’s simple and easy to use, and compatible with all smartphones, so customer can use our APK/APP to do setting of the Bluetooth beacon quickly and easily


    We designed our own APK/APP for our Bluetooth beacon, it’s simple and easy to use, and compatible with all smartphones, so customer can use our APK/APP to do setting of the Bluetooth beacon quickly and easily

    Most products of Bluetooth beacon are made by Nordic chipset in the market, we also have our Nordic 52832 and 52810 Beacon, but now days Nordic chipset supply is a big problem and price rise very high. In this case our company is the first to successfully adopt the domestic Bluetooth chipset in beacon products, after several months development, we successfully designed the beacon with domestic chipset and achieve the same performance, so even the bad covid situation may still last for years and chipset supply problem still exist we are capable to provide our customer more choices we can deliver with same quality beacon but lower cost and importantly no supply issue.


    This Bluetooth beacon is designed by our engineer team which has more than 10 years experiences in this area, especially the RF design, our beacon product has the best performance of the antenna design compared with the most beacon product in the market.


    We not only provide the hardware like the Bluetooth beacon and Bluetooth gateway, we are actually can provide total solutions regarding the indoor positioning and assets management and so on, so our strong R&D strength and experienced engineer can help customer to explore new opportunities in this market, help customer to do development of hardware and software.


    . Bluetooth beacon based on low power Bluetooth chip

    . Powered by two ER14250 batteries and can be used for up to 5 years

    . Broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address

    . Beacon parameters can be set through the mobile phone APP

    . Broadcast distance can reach 80 meters

    . Using 3M glue can be easily installed and fixed

    . Firmware have connect type and non-connect type

    . With temperature and humidity sensor and acceleration sensor optional

    . With unique design for IP67 protection

    . CE, RoHS, FCC, KC compliance

    . Using domestic chip 3431 with low cost and no supply issue


    Specification:

    Hardware Parameters

    Hardware parameters
    AntennaPCB Antenna
    BatteryER14250 2*1200mAh
    Voltage3.6V
    Dimensions (D×H)53.86*24.93mm
    Wireless Performance
    Wireless standardBluetooth ® 4.2
    Frequency range2400MHz---2483.5MHz
    Data rate1Mbps
    Modulation modeGFSK Modulation
    EncryptionAES HW Encryption
    Transmission powerTx Power -20 to +4 dBm in 4 dB Steps
    Reveiving sensitivity-93dBm at 1 Mbps BLE
    Work modePeripheral
    Other

    Environment

    Working temperature: -40℃~85℃
    Storage temperature: -40℃~85℃
    Working humidity: 10%~90% Non-condensing
    Storage humidity: 5%~90% Non-condensing

    Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors)
    Measurement accuracy of humidity±1.5 %RH
    Humidity measurement resolution0.01 %RH
    Temperature measurement accuracy±0.1 ℃ (20℃-60℃)
    Temperature measurement resolution0.015 ℃
    Temperature measurement range-40~125 ℃
