    2483.5MHz Bluetooth BLE Beacon

    Ask Lasest Price
    Brand Name : Createk
    Model Number : ITBB802-PA
    Certification : CE, RoHS, FCC, KC
    Payment Terms : T/T, Western Union
    Supply Ability : 100k pcs/ month
    Delivery Time : 4 weeks
    Price : USD8.6
    • Product Details
    • Company Profile

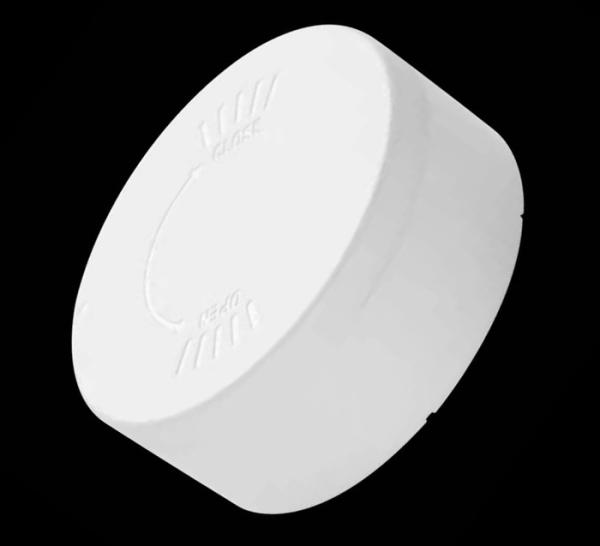

    2483.5MHz Bluetooth BLE Beacon

    Bluetooth Beacon with New chip 8811 broadcast UUID, Major Minor reach 80 meters 3M glue IP67 acceleration sensor


    Model Name: ITBB802-PA

    Bluetooth beacon ITBB802_standard_8811_waterproof_acceleration


    Product Overview


    The low-power Bluetooth beacon ITBB802 is developed and produced based on the low-power Bluetooth chip. It is powered by two ER14250 batteries and can be used for up to 3 years (500ms broadcast once).

    ITBB802 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, among which UUID, Major, Minor, Bluetooth name can be set through the mobile APP.

    The broadcasting distance of ITBB802 can reach 80 meters (when the transmitting power is 4dBm), and the use of 3M glue can facilitate installation and fixation.


    Specification:

    Hardware Parameters

    Hardware parameters
    AntennaPCB Antenna
    BatteryER14250 2*1200mAh
    Voltage3.6V
    Dimensions (D×H)53.86*24.93mm
    Wireless Performance
    Wireless standardBluetooth ® 4.2
    Frequency range2400MHz---2483.5MHz
    Data rate1Mbps
    Modulation modeGFSK Modulation
    EncryptionAES HW Encryption
    Transmission powerTx Power -20 to +4 dBm in 4 dB Steps
    Reveiving sensitivity-93dBm at 1 Mbps BLE
    Work modePeripheral
    Other

    Environment

    Working temperature: -40℃~85℃
    Storage temperature: -40℃~85℃
    Working humidity: 10%~90% Non-condensing
    Storage humidity: 5%~90% Non-condensing

    Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors)
    Measurement accuracy of humidity±1.5 %RH
    Humidity measurement resolution0.01 %RH
    Temperature measurement accuracy±0.1 ℃ (20℃-60℃)
    Temperature measurement resolution0.015 ℃
    Temperature measurement range-40~125 ℃
