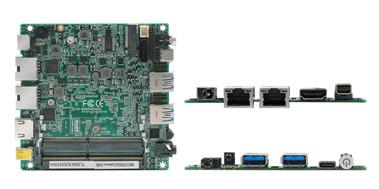

    FCC Industrial Motherboard , Celeron 6305U Intel NUC Motherboard

    NUC motherboard intel CPU windows 10/11 Quadcore high performance rich I/O ports


    Model Number: MB-TL500CA

    NUC motherboard(100*100mm)_Celeron 6305U_I5-1135G7_I7-1165G7


    Product Brief


    ◆ Adopt Intel 11th Tiger Lake Celeron,Core i3/i5/i7 processor;

    ◆ 2 *DDR4 SODIMM 260 Socket;

    ◆ 1*HDMI2.0,1*MINIDP 1.4(Support DP++);

    ◆ 2*USB3.1 GEN2,1*TYPE-C(USB3.1 GEN2) ;

    ◆ 2*INTEL I211/I210 lan port;

    ◆ Support PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of two);

    ◆ Support DC 12-19V power supply (a power supply with rated power above 80W is required);

    ◆ Size 101*101mm;


    Product Specification



    Processor system

    CPUAdopt Intel 11th Tiger Lake Celeron,Core i3/i5/i7 processor
    CPU packageFCBGA 1449
    ChipsetSupport Tiger Lake serial processor
    BIOSEFI BIOS
    RamTechnology ArchitectureDual channel DDR4 2400/2666/3200MHz
    Ram2*DDR4 SO-DIMM Ram socket,max support 64GB

    Video

    Graphics controllerIntel UHD Graphics 620,the graphics card model is related to the CPU
    MINI DPMINI DP supports a maximum resolution of 4096x2304 60HZ(Support DP++)
    HDMI2.0HDMI2.0 supports a maximum resolution of 4096x2304 60HZ
    Dual Display supportMINI DP+HDMI2.0Synchronous or asynchronous display
    I/O panelport1*DC,2*LAN,1*HDMI2.0,1*MINI DP,1*AUDIO,2*USB3.1,1*SWLED,1*TPYE-C,1*CIR1(Infrared interface)
    NetworkController2*INTEL I211 Gigabit network card (I210 network card chip can be replaced), RJ45 interface
    AudioControllerRealtek HD ALC662 audio decoding (left and right channels + microphone)
    Super I/OControllerIT8613E
    Hardware monitoringWatchdog timer0-255 seconds, provide watchdog routine
    CoolerAluminum fan radiator

    Input/Output Interface

    USB4*USB2.0(2*2x5 2mm pin header),2*USB3.1 GEN2,1*TYPE-C USB3.1 GEN2
    Serial port1*RS-232(TTL level can be changed)
    Expansion BusMini-PCle1*Mini-PCIe socket,Support PCIe and USB Device,Comes with micro SIM card slot
    LPC1 ESPI pin extension interface
    StorageSATA1 standard SATAIII interface, maximum transfer rate 6Gb/s
    NGFFPCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of the two)
    Power supplyPower supplyWide voltage DC 12-19V power supply (a power supply with rated power above 80W is required)

    working environment


    Operating temperature-20℃ ~ +60℃
    storage temperature-40℃ ~ +85℃
    Working humidity0% ~ 90% relative humidity, non-condensing
    Storage humidity0% ~ 90% relative humidity, non-condensing
    System supportWIN10 linux (Platform reasons, Legacy mode boot is not supported, only UEFI mode boot is supported)

    physical dimension


    Size101*101 mm
    Weight0.5KG
    CertificationCE,RoHS,FCC
